This cement style LVT collection provide a durable class 34 commercial vinyl flooring that offers a superior performance in scratch resistance and slip resistance. With 40mil thick protective layer that is be far one of the highest grade in vinyl wear layer thickness. The unique coating in addition provide extra safety in slip resistance performance.
This commercial grade LVT flooring is constructed with:
- Transparent Top Wear Layer
- High Definition Print Film Layer
- Semi-rigid Backing Layer
Three Major Benefits
- The heavy gauge backing and annealed construction offer excellent dimensional stability and wear resistance.
- Robust protective top layer ensures superior stain resistance as well as lower maintenance.
- All the advantages of vinyl and adding the look and texture of natures materials.
Product Specification
| Overall Thickness | 3.175mm | 0.125″ |
| Wear Layer Thickness | 1.0mm | 40mil |
| Plank Size Dimensions | 45.72cm x 91.44cm | 18″ x 36″ |
| Surface Embossing | Deep Embossing / Cement Texture |
Technical Parameters
| Criteria / Specification | Results |
|---|---|
| Size & Squareness (ASTM 2055) | Pass |
| Stability (EN 986) | Pass |
| Abrasion Resistance (EN 660) | Excellent (0.284g/5000 cycles) |
| Static Load (ASTM F970 – Modified) | 2000 psi |
| Sound Insulation (DIN 52210) | 4dB |
| Slip Resistance (ASTM D 2047) | Pass (Exceeds ADA Recommendations) |
| Stain & Chemical Resistance (ASTM 925) | Pass |
| Light Resistance (F 1515) | Pass |
| Indentation Resistance (F 1914) | Pass (<8%) |
| Radiant Panel Test (ASTM E648) | Class 1 |
| Smoke Density (ASTM E662) | Pass (<450 sdi) |
| Heat Stability (ASTM 1514) | Pass |
| HUD/FHA Requirements | Exceeds |
Packaging
| Planks per Carton | 8 tiles/carton |
| Coverage per Carton | 36 sq. ft |
| Weight per Carton | 35.78 lbs |
Suitable Applications
- Beauty Salons
- Conference Rooms
- Corporate Lunchrooms
- General Office
- Hospitals
- Libraries
- Pharmacies
- Retail/Department Stores
- Resorts
- Restaurants
- Spas
- Supermarkets
Installation
Surface Preparation: Sub floor (wood or concrete) must be structurally sound, clean, smooth, dry free from dust, dirt, wax, grease, and/or any other foreign material that would interfere with a good bond.
DO NOT USE adhesives where moisture is present in concrete or wood-type sub floors. Moisture may retard or prevent adhesive from setting.
Primer: Latex primer acts like a sealer but allows adhesion of the tile to the concrete floors. It also helps preventing moisture from getting between the tile and sub floor. Tools required: Utility knife, carpenter square, chalk, string, pencil and rolling pin.
Installation Guide
Luxury vinyl tile and adhesive must be conditioned at room temperature, minimum 65°F for 24 hours before and 24 hours after installation. Porous Substrate- Spread adhesive with a 1/16” x 1/16” square trowel. Non-Porous substrate will require a 1/16” x 1/32” x 1/32” U notch trowel. Apply adhesive to sub floor according to the instructions on the container. Spread adhesives over a small area to avoid letting the adhesive dry too much before you have finished laying your plank. Planks use the wet set installation instructions. Roll each section immediately upon completing with a 100 lbs. three-section roller. Re-roll the entire floor after one or two hours. If you do not have a roller, then use a rolling pin and your body weight. Do not wash or treat the floor for a minimum of 48 hours after installation.
Class 34 Commercial Vinyl Flooring Production

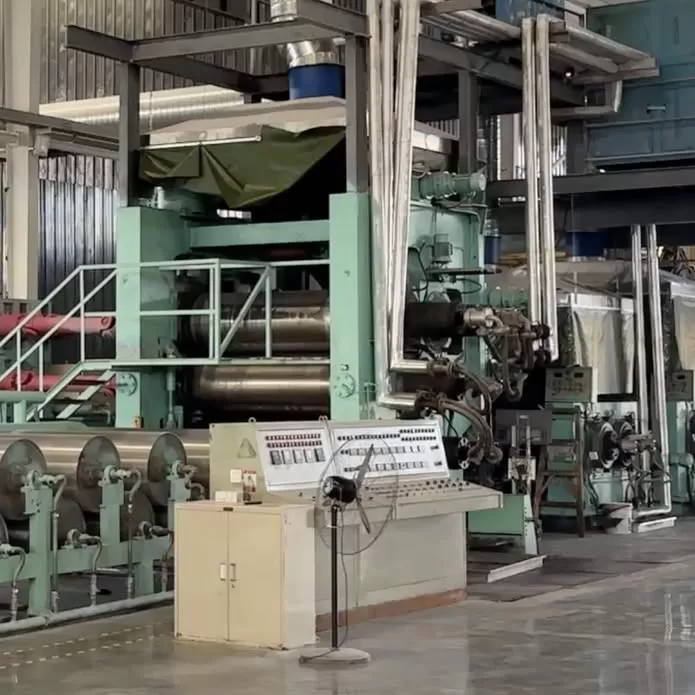

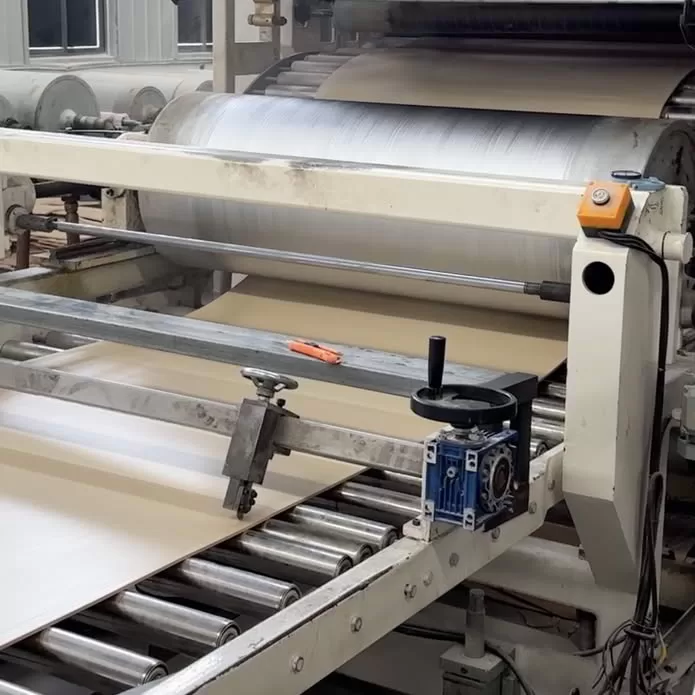

Engineering made with top quality virgin PVC compositions, the class 34 commercial vinyl flooring offers exceptional quality and performance. There are two methods available for making class 34 vinyl floorings. One is the 2 step production process where base layer is individually made through calendar process. Once the base layer is seasoned, it is laminated with top wear layer and print layer by thermo pressure lamination. The second method is a continuous production technique where base layer is immediately laminated with wear layer and print layer once it is extruded.
What are the Best Factory for Buying Class 34 Vinyl Floorings
If you are exploring for opportunities to import class 34 vinyl floorings, then you are at the right place. Hengdi New Material Group is a leading and professional factory based in central China. While only established since 2020, our experienced R&D and operations has already have decades of experience working for leading brand manufacturers. With dedication for next generation vinyl floorings, Hengdi has launched innovative flooring products that supports flooring brands to create a difference in their resilient flooring product lines.
Hengdi offers innovations in the following areas;
- PVC free compositions for environmental and true recyclable LVT / SPC floorings
- Thermostatic heating flooring with superior energy efficiency
- Scratch Resistance RTS 1 Rating for Laminate Like Performance Vinyl floorings
- Acclimation Free LVT / SPC Performance
